Power supply for automotive projects (CB21187E)

Details
Written by: Newton C. Braga

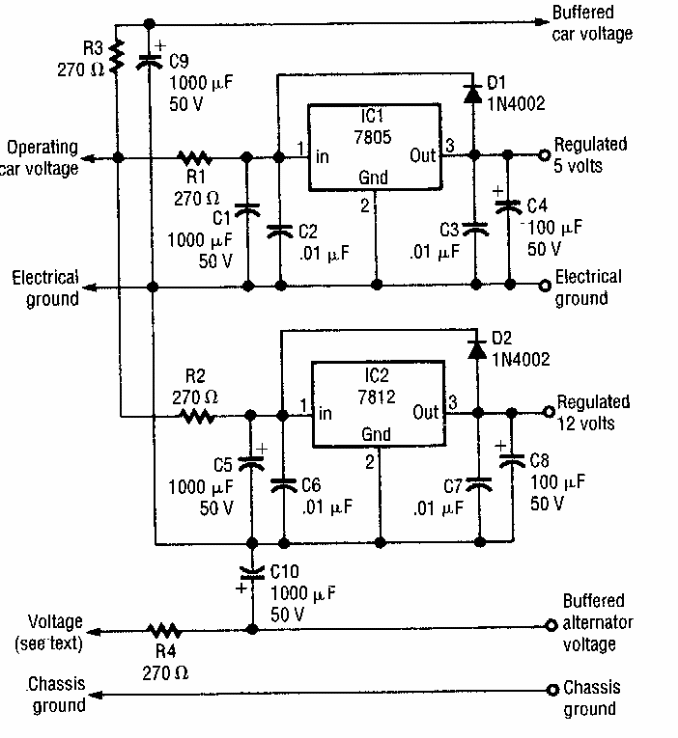

This 1 A power supply was found in an Electronics Now from the 90's. The integrated circuits must be equipped with heat sinks.
