Amplifier Protection (CB24882E)

Details
Written by: Newton C. Braga

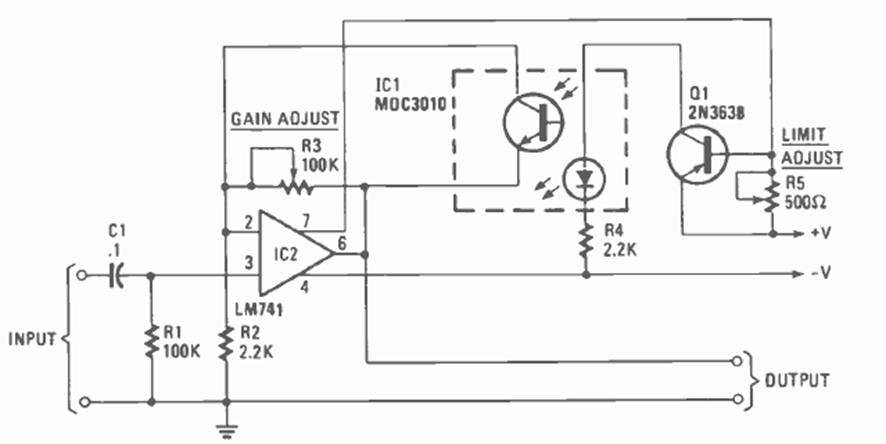

This circuit is used to protect an amplifier from excessive power output that would cause problems for the speakers. The circuit is from the January 1985 issue of Radio Electronics magazine.
