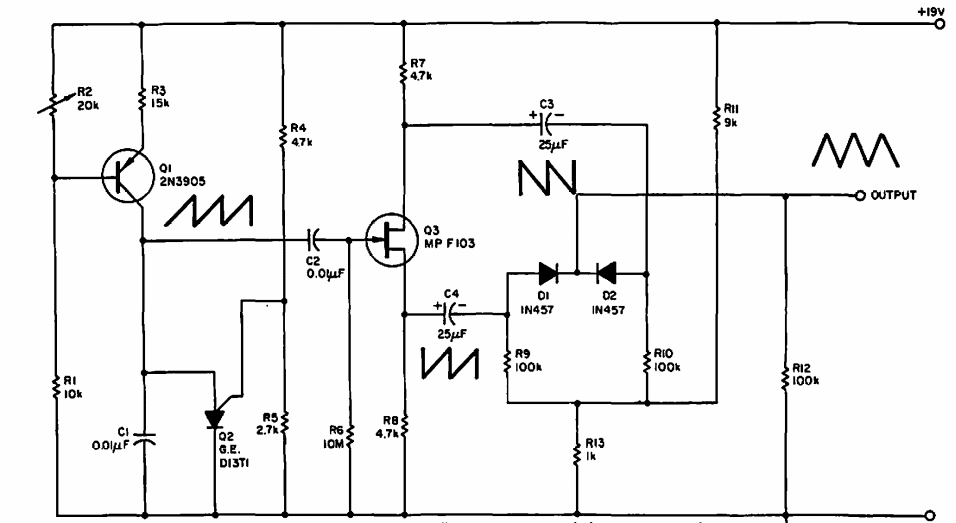

Triangular and sawtooth generator (CB21447E)

Details
Written by: Newton C. Braga



This circuit was obtained from a 1969 Electronic Design. Transistors admit modern equivalents. The frequency of the signals is set to R2.




| Clique na imagem para ampliar |
