Transistor as temperature sensor (CB21381E)

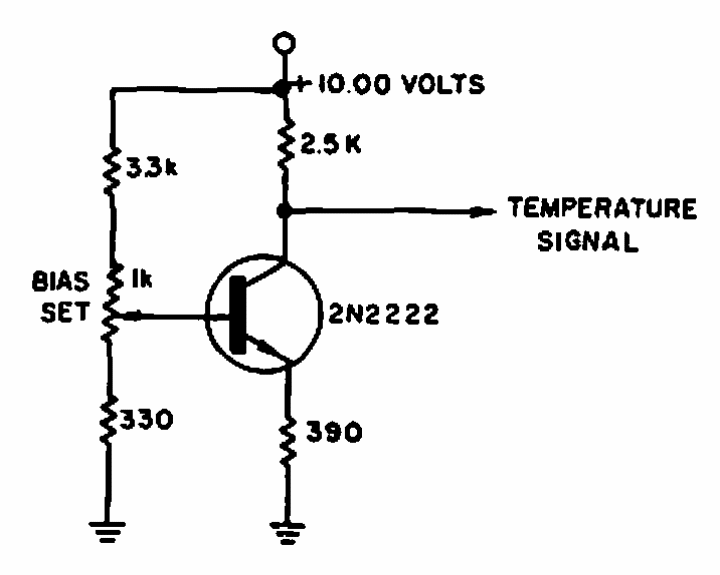

In the figure we have the configuration of a transistor as a temperature sensor. The circuit is from an old American documentation.

| Clique na imagem para ampliar |
