Scanner Squelch (CB21230E)

Details
Written by: Newton C. Braga

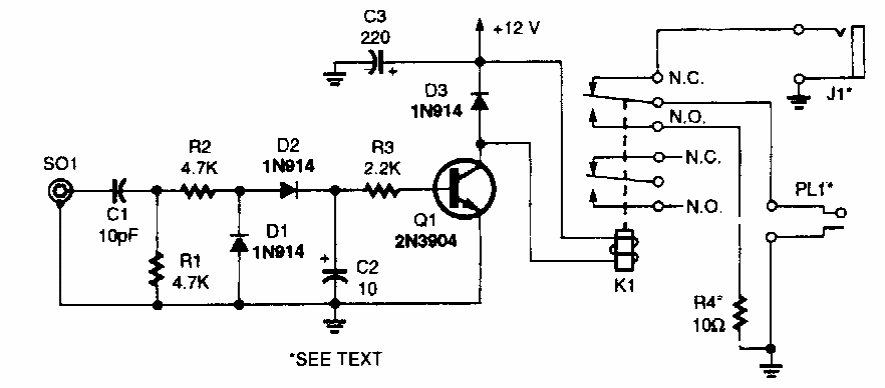

This circuit was found in a Popular Electronics from the 90s. Its purpose is to disable the output of an FM or VHF receiver between stations, preventing the reproduction of hiss.




| Clique na imagem para ampliar |
