Launched in April 2017 by Texas Instruments, the TLV62568 is a high-efficiency synchronized Buck converter in SOT enclosures. See in this article some features of this component as well as applications.
The TLV62568 High-efficiency Buck Converter from Texas Instruments is available from Mouser Electronics and can be obtained from: http://www.mouser.com/search/refine.aspx?Ntk=P_MarCom&Ntt=117915062 .

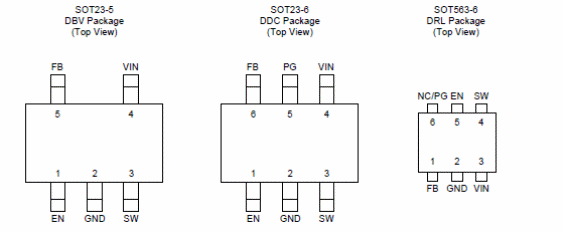

It is a step-down converter for currents up to 1 A and input voltages in the range of 2.5 V to 5.5 V. The enclosure is SOT with the pinouts shown in figure 1.

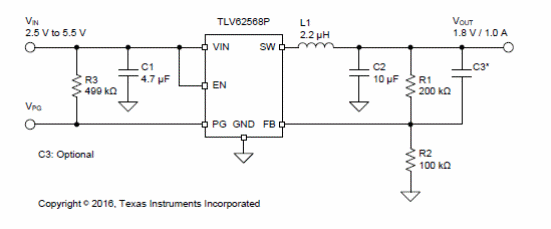

An application circuit for TLV62568 is shown in figure 2.
An important point to highlight is the efficiency that reaches 95%.
We also have the characteristic frequency of operation of 1.5 MHz, and the quiescent current of 35 uA with an output voltage that can be adjusted between 0.6 V and the input voltage.
Protections and a power saving mode can also be found in this component and additional information such as graphs and wiring and electrical characteristics tables can be obtained from the datasheet.
