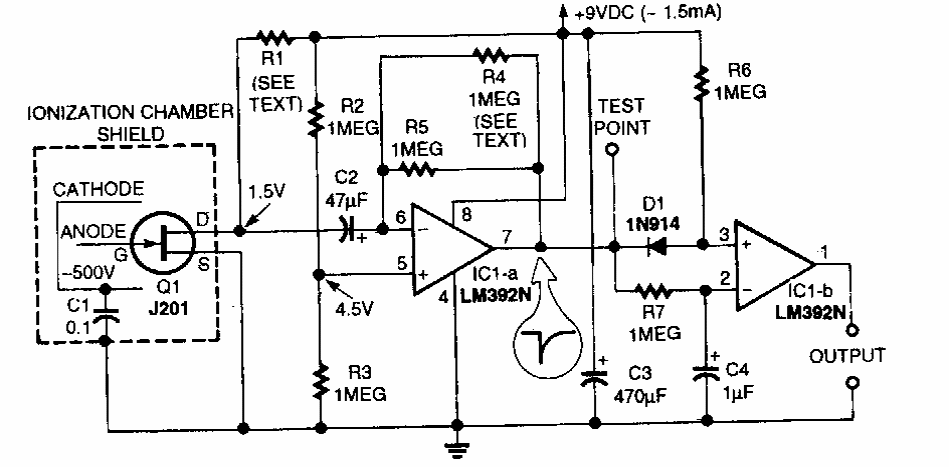

Amplifier for radon monitor (CB21202E)

This circuit was found in an Electronics Now from the 90's. See the previous article for the assembly of the detector head.

| Clique na imagem para ampliar |
