Darkness Monitor (CB21019E)

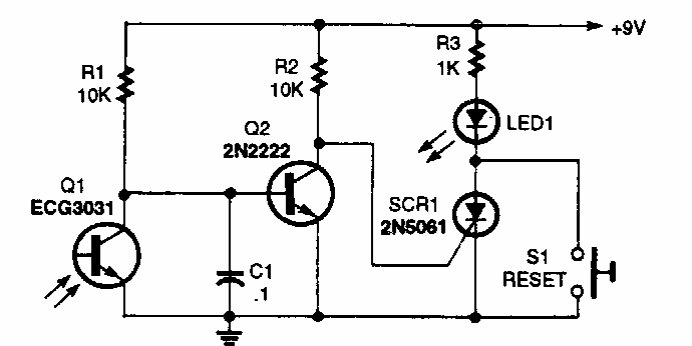

Found in Popular Electronics this circuit triggers an SCR and lights an LED when the location of the sensor is dark.

| Clique na imagem para ampliar |

Instrumentation amplifier 741 (CB13227E)
This circuit is from an American technical documentation from the 70s, but it can be easily...
Unijunction Analog to digital Converter (CB23909E)
This circuit converts a range of input voltages at frequencies from 800 Hz to 3.7 kHz. This is a...
Incandescent flasher (CB22117E)
This circuit has a configuration that is widely known and explored on our website. The SCR can be...
