Video Amplifier (CB21321E)

Details
Written by: Newton C. Braga

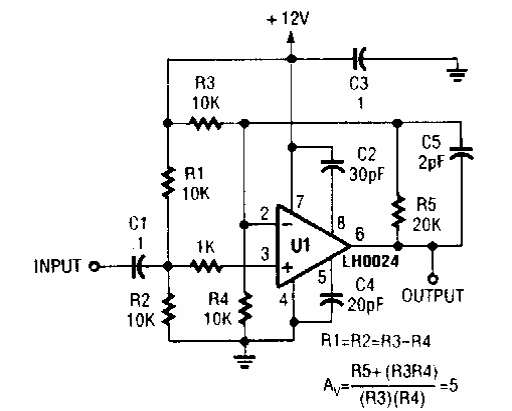

Found in Popular Electronics from the 90s, this circuit is intended for amplifying analog video signals.
