Stereo Decoder TBA450N (CB21887E)

Details
Written by: Newton C. Braga

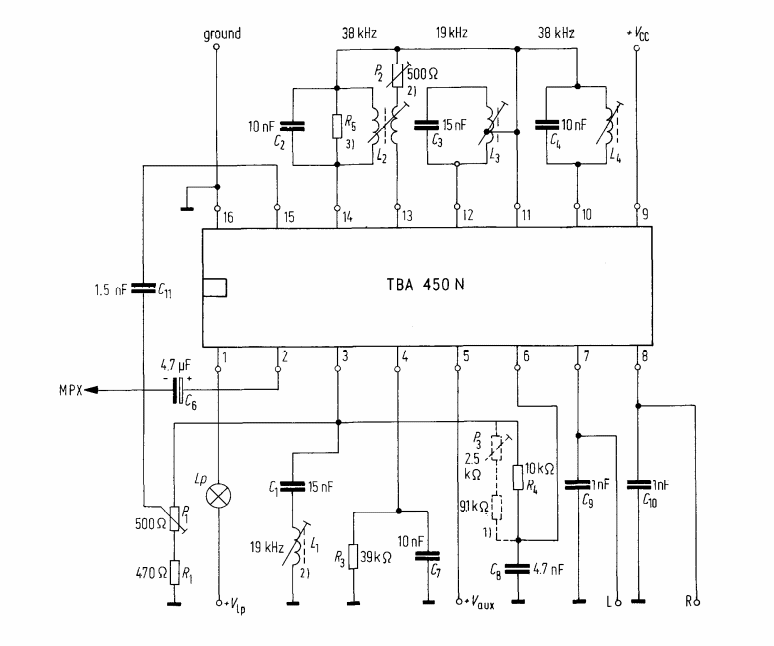

In the figure we have the typical circuit of a stereo decoder using the TBA450N integrated circuit. The circuit is from the 1976 Siemens manual. No information was given on the coils.
