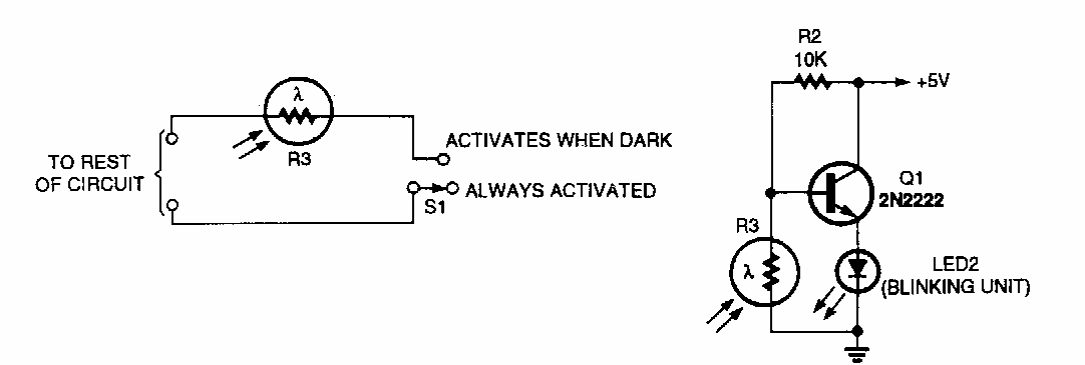

LED beacon (CB21017E)

This circuit was taken from a popular 90's Electronics. The LDR is mounted next to the LED to feed back the circuit.

| Clique na imagem para ampliar |
