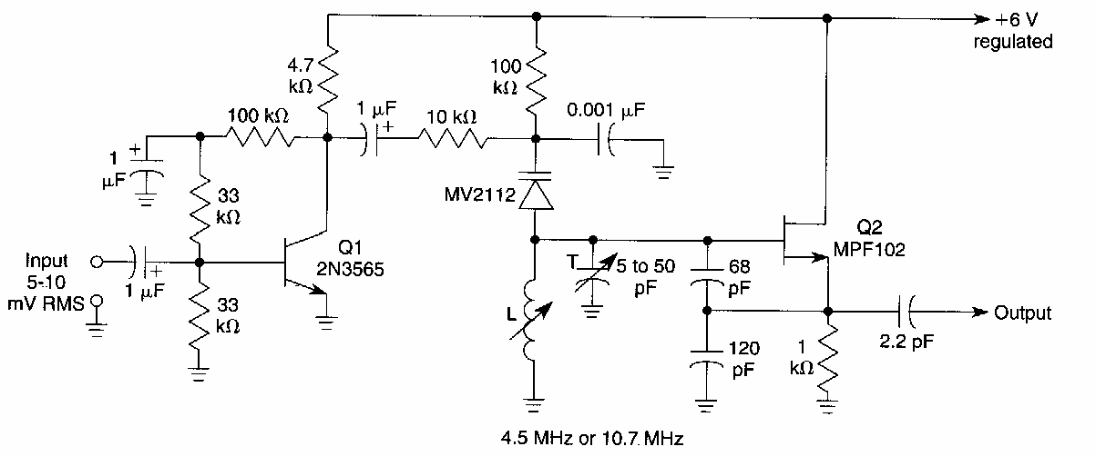

This circuit generates an FM signal of 4.7 or 10.7 MHz for audio signals on analog TV or FM, with the purpose of carrying out tests and adjustments. The circuit is from an American documentation from the 90s.
| Clique na imagem para ampliar |
Sound Subcarrier Generator (CB21059E)
- Details
- Written by: Newton C. Braga
