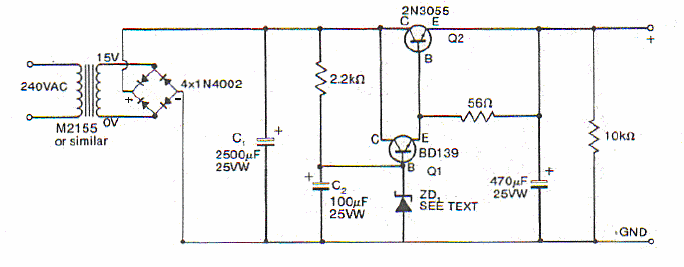

The transformer in this power supply can have a secondary winding from 1 to 15 A of current. Voltage is given by the zener diode. Transistor 2N3055 must be mounted on a good heat radiator.
| Clique na imagem para ampliar |
Regulated power supply (CB21698E)
- Details
- Written by: Newton C. Braga
