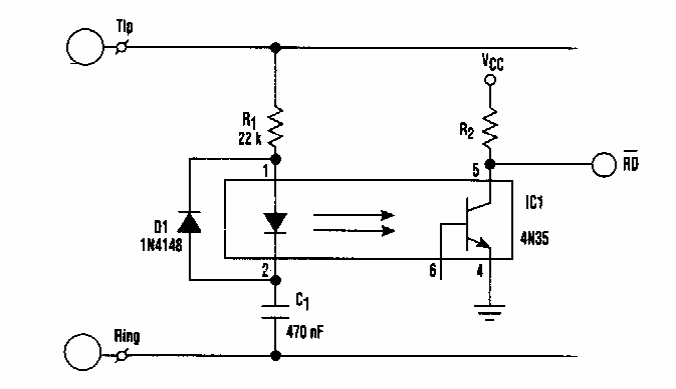

Dial Signal Detector (CB21274E)

This circuit was found at Electronics Now. It can be used as a shield detector for dial signals in an automation project.

| Clique na imagem para ampliar |

Progressive Switch (CB16940E)
When S1 is closed, the L1 lamp turns on and the L2 lamp turns off. The circuit is powered...
Light Controlled Oscillator (CB16728E)
This is yet another version of the light-controlled oscillator that can be found on this website. This...
DC Motor and Stepper Controls with the A3906 (CB12777E)
The A3906 integrated circuit from Allegro MicroSystems (www.allegro.com) consists of a single-step motor...
