2 kW Control (CB21374E)

Details
Written by: Newton C. Braga

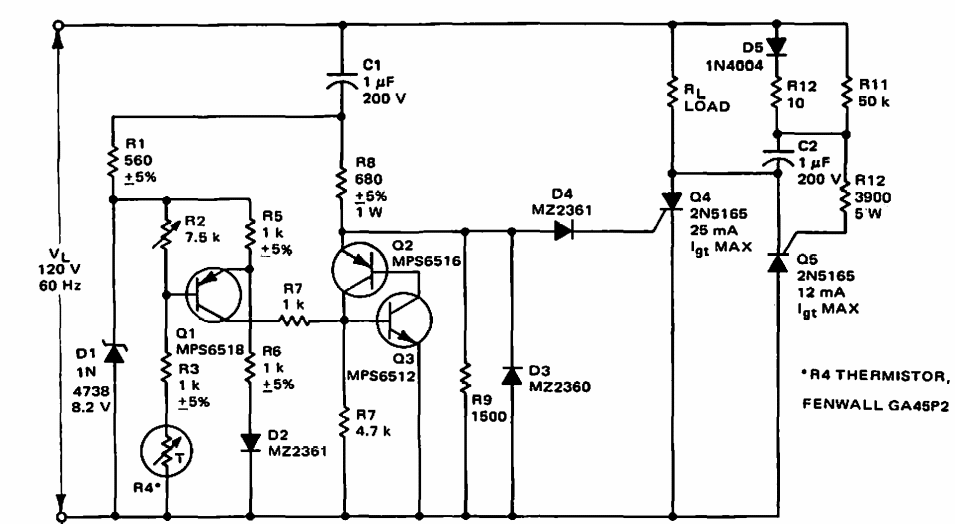

This power control was found in a 1968 power circuit manual. The SCRs are according to the power of the controlled load.
