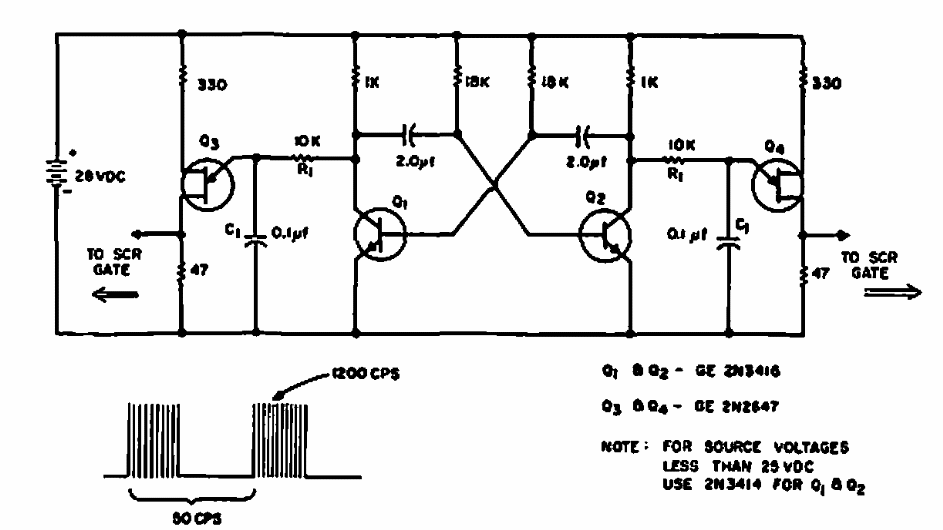

Pulse Generator (CB21458E)

Details
Written by: Newton C. Braga



We found this circuit in a 1965 General Electric manual. The components are from the period. Time resistors and capacitors can be changed.
