5V power supply (CB21176E)

Details
Written by: Newton C. Braga

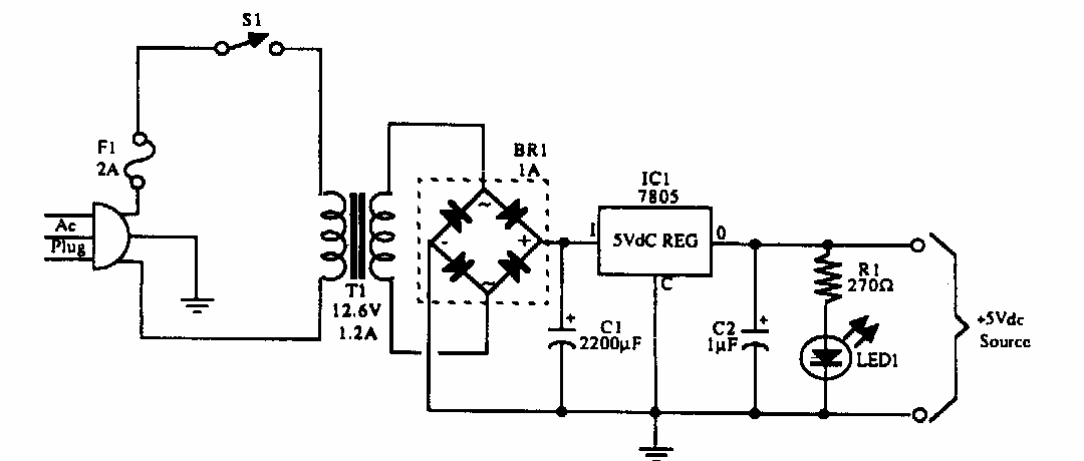

In the figure we have a simple 5 V power supply obtained from an American documentation from the 90's. The integrated circuit must be equipped with a heat radiator.




| Clique na imagem para ampliar |
