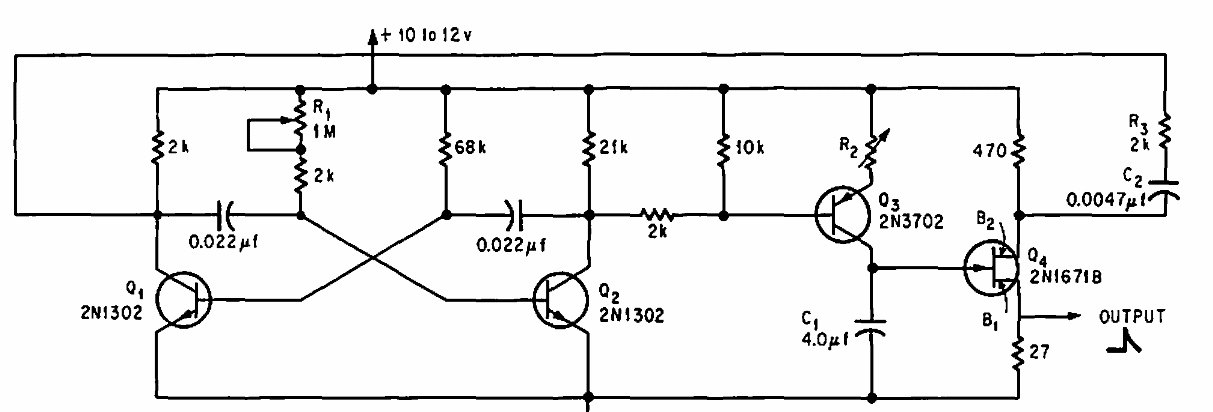

4 to 32 minutes timer (CB21437E)

This circuit was found in a 1967 publication. Transistors can be modern general purpose. Component values can be changed for other timings.
