Piezoelectric Buffer (CB21152E)

Details
Written by: Newton C. Braga

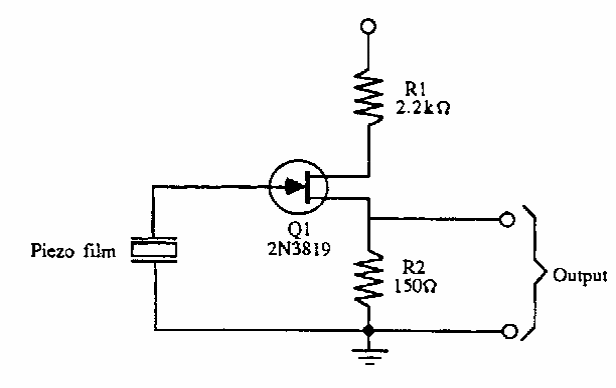

This circuit was found in American documentation from the 90s. It serves as an amplifier for a piezoelectric transducer.
