Heater for photo development (CB21390E)

Details
Written by: Newton C. Braga

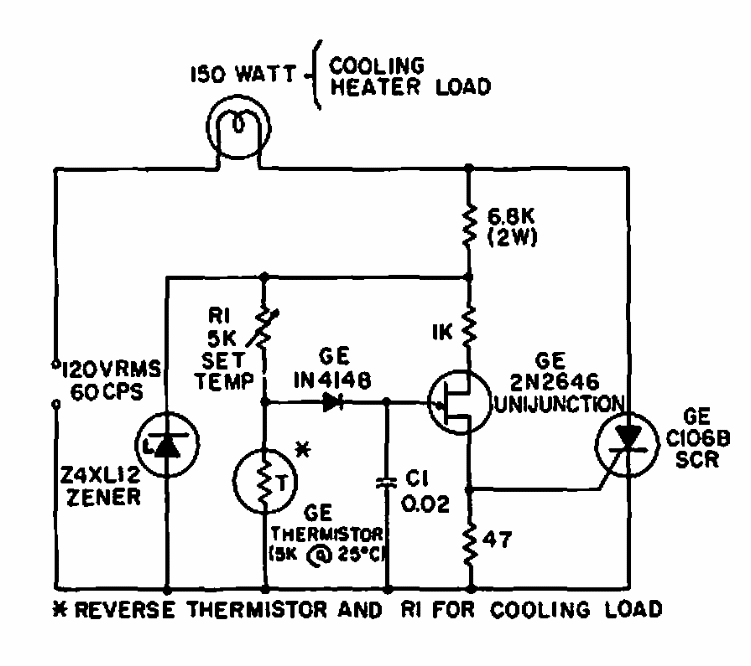

Found in a 1965 General Electric documentation, this circuit is intended to control a 150 W lamp used as a heating element for developing photos.
