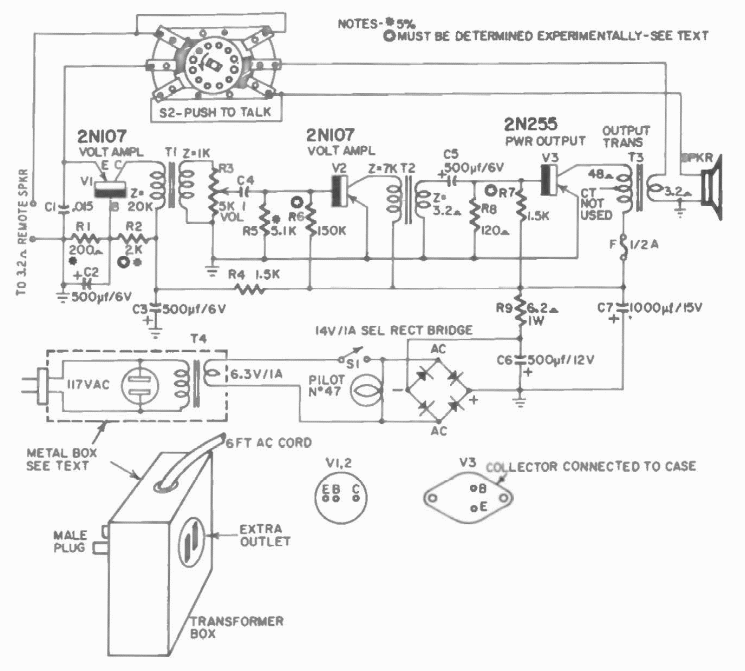

Remote listening amplifier (CB21957E)

Today we can call this circuit a baby monitor. It is a microphone amplifier found in a publication by Hugo Gernsback from 1960.

| Clique na imagem para ampliar |
