Astable 4093 (CB21125E)

Details
Written by: Newton C. Braga

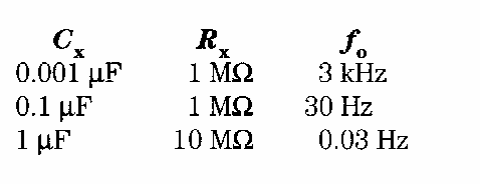

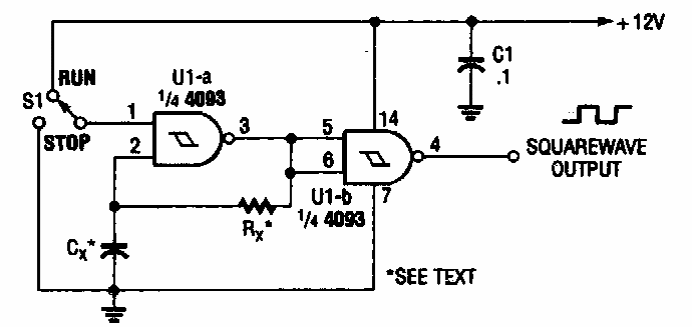

This circuit from a Popular Electronics from the 90's can generate signals from 0.03 Hz to 3 kHz depending on the value of the capacitor and resistor.













| Clique na imagem para ampliar |
