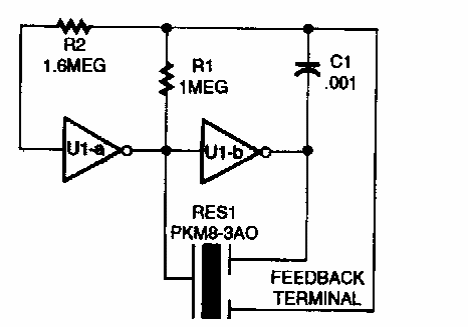

Piezoelectric Driver 2 (CB21148E)

This circuit uses an integrated CMOS having the frequency determined by the resistors and capacitors. Power can be between 3 and 12 V.
