Hydrophone (CB21070E)

Details
Written by: Newton C. Braga

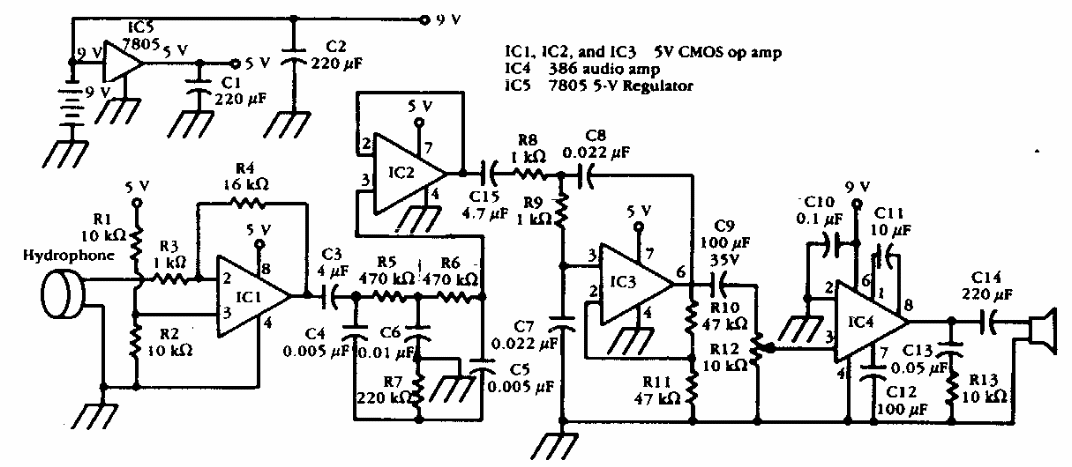

This circuit allows the listening of undersea sounds using a special transducer. Operational amplifiers can be of any type. The circuit was found in a Popular Electronics from the 90s.




| Clique na imagem para ampliar |
