High Frequency VFO (CB21141E)

Details
Written by: Newton C. Braga

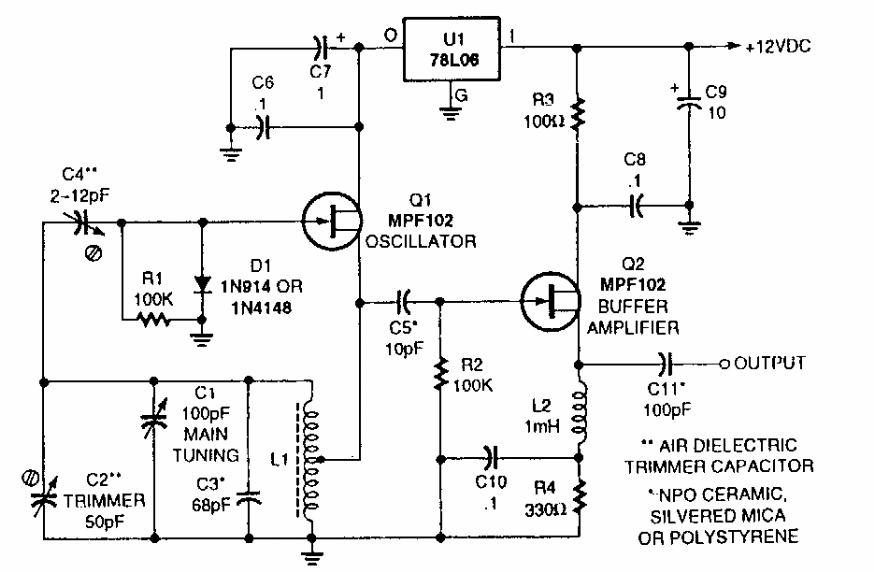

Found in Popular Electronics from the 1990s, this variable frequency circuit generates signals in the shortwave range. FETs admit equivalents.




| Clique na imagem para ampliar |
