This circuit shows how to simulate a high-performance diode with two diodes. The circuit is from a 1960s RCA documentation. Modern general-purpose transistors can be used.
| Clique na imagem para ampliar |

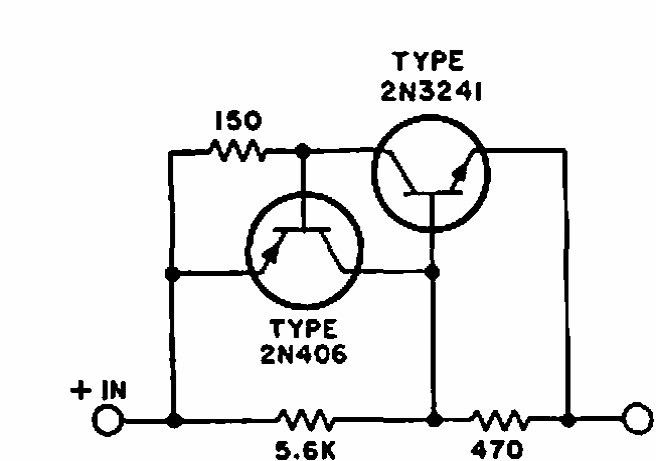

Two transistor diode (CB21473E)
