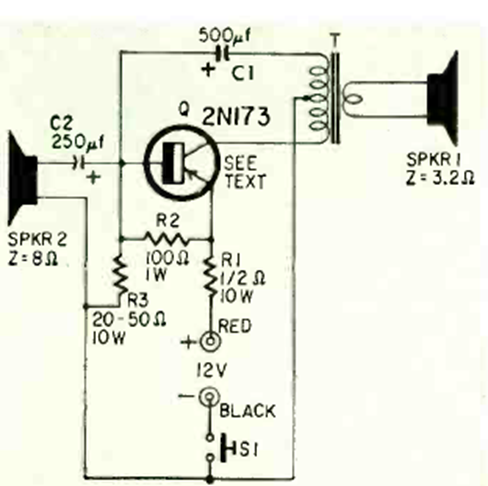

This circuit was found in a Radio Electronics from May 1965. The transistor is a power transistor and in the original design it uses the metal case as a heatsink. The circuit operates with two speakers.
Musical Horn (CB23653E)
- Details
- Written by: Newton C. Braga
