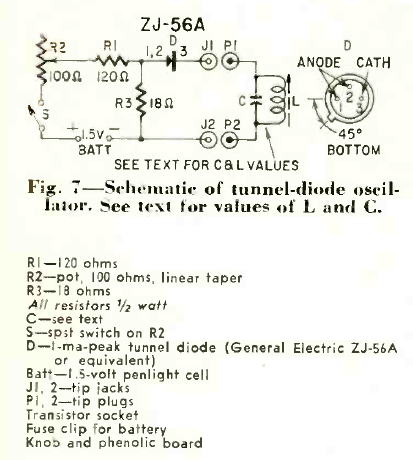

This oscillator circuit is from a Radio Electronics magazine from September 1960. The frequency depends on the tuned circuit and the oscillation point is adjusted using the potentiometer.
Tunnel diode oscillator (CB23691E)
- Details
- Written by: Newton C. Braga
