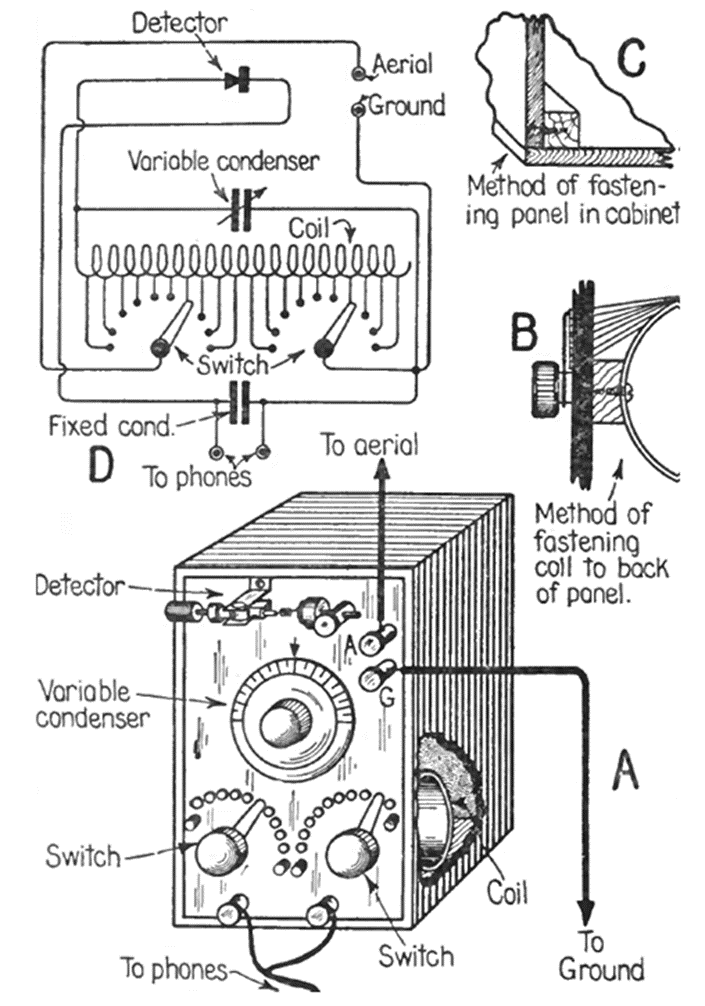

This receiver is from a 1922 publication by Hugo Gersnback. The coil can be formed by 100 turns of wire 28 in a tube of 5 cm in diameter with derivations every 5 turns, for example. The switches select the position of best reception. The detector can be a galena crystal or a 1N34 diode.
