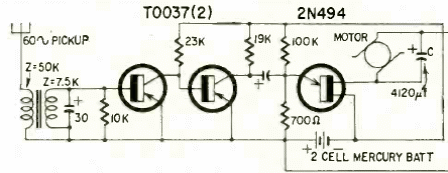

This circuit is used to obtain the synchronized activation of a mechanical battery clock. The circuit is from a Radio Electronics dated August 1952. The antenna uses the 60 Hz noise from the network captured for synchronization.
Synchronized clock (CB22536E)
- Details
- Written by: Newton C. Braga
