Reverse polarity protection (CB22139E)

Details
Written by: Newton C. Braga

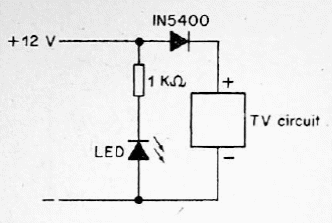

Found in an old English documentation, this circuit protects a portable TV against reverse polarity of the power supply, lighting an LED indicator.
