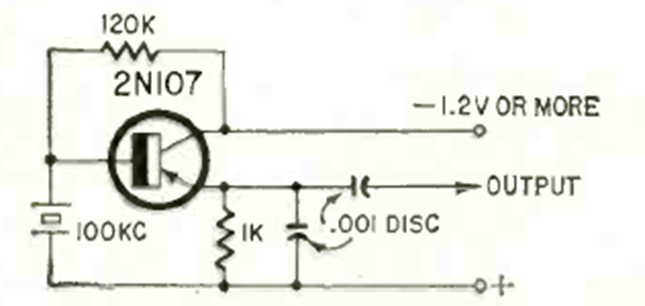

Using the well-known 2N107, one of the first commercial transistors, this circuit produces a 100 kHz signal according to the crystal. Power can be supplied with voltages from 1.2 V. Equivalent transistors can be used.
| Clique na imagem para ampliar |
