Model Railroad power supply (CB23728E)

Details: Written by: Newton C. Braga

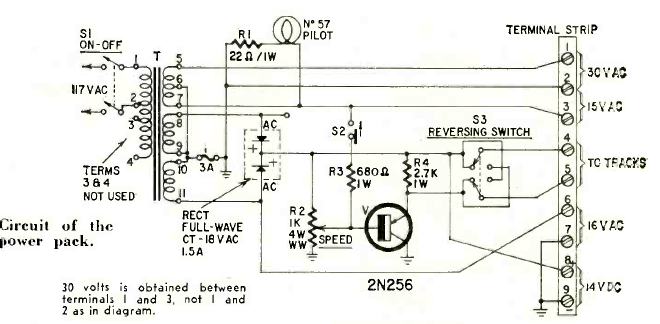

This power supply for model railroad was found in a February 1961 Radio Electronics Magazine. The transistor must be mounted on a heatsink and the transformer is a 1,5A secondary winding.

| Clique na imagem para ampliar |
