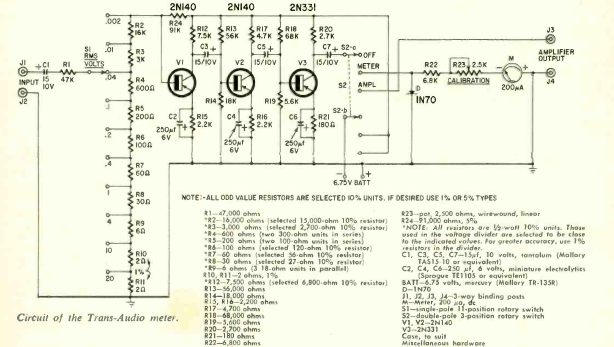

The assembly of this circuit with 3 transistors was described in an article in Radio Electronics magazine from February 1963. Note the different scales depending on the range of measured signal intensities.
