Pulse generator 2N2646 (CB23922E)

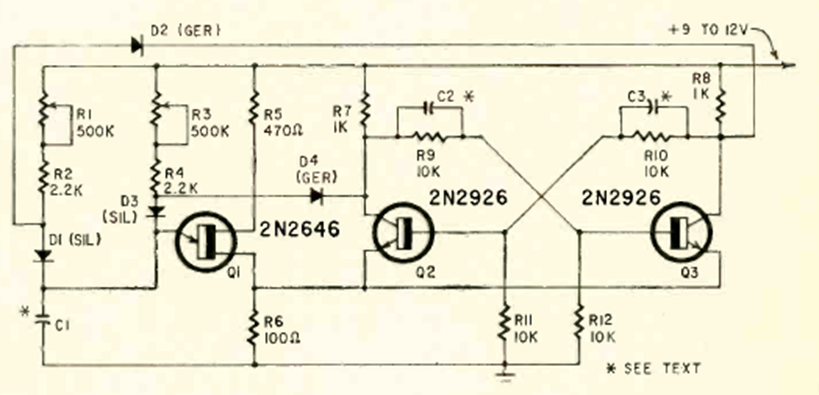

We found this circuit in a Radio Electronics from July 1968. The circuit generates rectangular pulses with an amplitude given by the supply voltage.
