Light change detector (CB22182E)

Details
Written by: Newton C. Braga

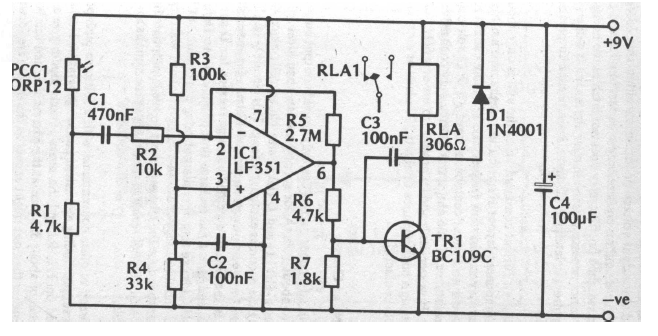

This photoelectric sensor that triggers a relay was found in an English book from 1989. The transistor is a general-purpose type, and the integrated circuit consists of an operational amplifier.






| Clique na imagem para ampliar |
