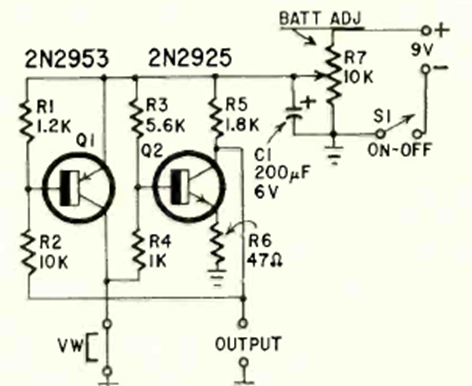

An oscillator slightly different from the previous one also appeared in Radio Electronics magazine in May 1968. The circuit uses a current source to power the wire that vibrates between the poles of a magnet.
Vibrating Wire Oscillator 2 (CB23900E)
- Details
- Written by: Newton C. Braga
