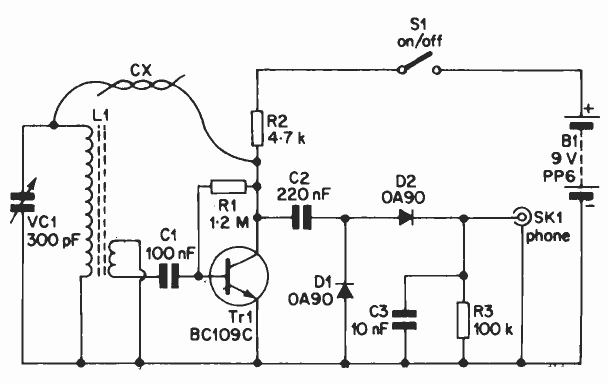

This receiver was found in old English documentation and any general purpose NPN transistor can be used. The coil has 8 turns primary and 10 turns secondary, using 28-wire on a ferrite rod.
