Ladder Generator (CB23757E)

Details
Written by: Newton C. Braga

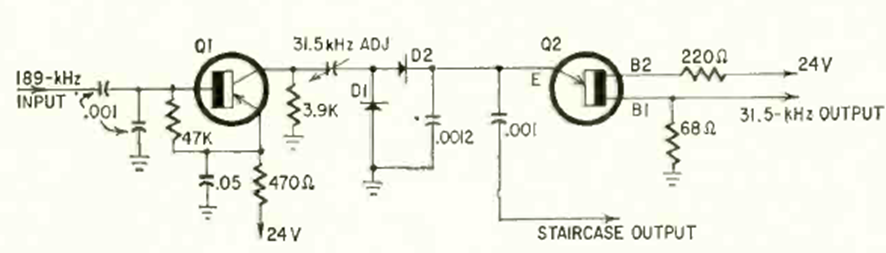

We found this ladder-shaped signal generator circuit in Radio Electronics magazine from August 1966. The circuit uses a unijunction transistor as its base.




| Clique na imagem para ampliar |
