Remote control transmitter (CB23712E)

Details
Written by: Newton C. Braga

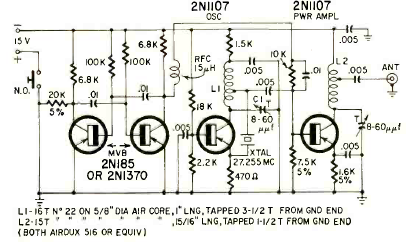

This remote-control transmitter for the 27 MHz band was found in the November 1960 Radio Electronics magazine. Information about the coils is given along with the diagram.
