Digital Switch (CB23756E)

Details
Written by: Newton C. Braga

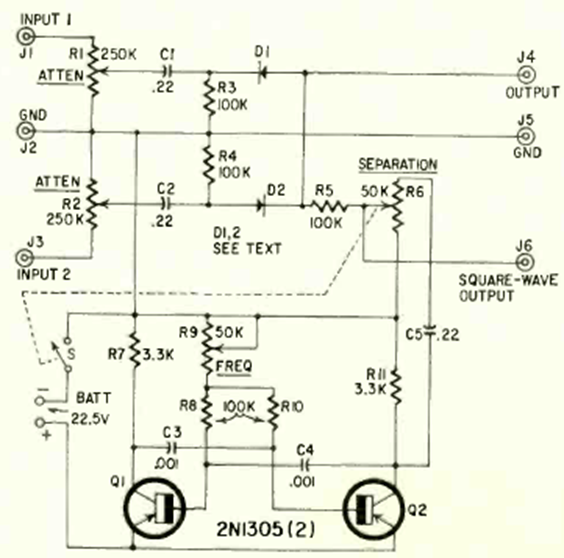

With this circuit it is possible to observe two low frequency signals at the same time on the screen of a single channel oscilloscope. The circuit is from an August 1966 Radio Electronics magazine.
