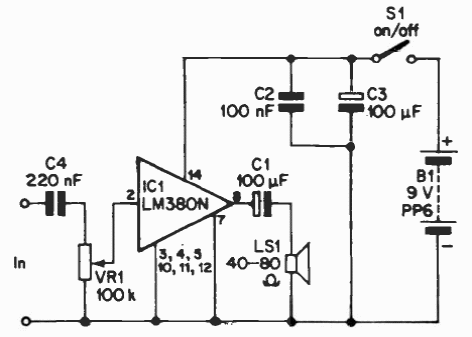

LM380 Amplifier (CB22052E)

This 200mW amplifier was found in old documentation. It can be powered with voltages in the range of 6 to 9 V. The circuit has excellent sensitivity.
