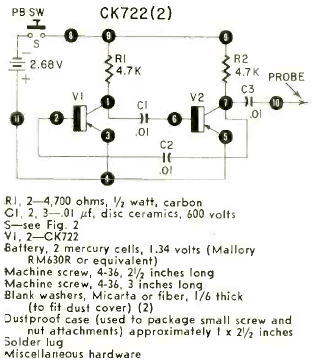

This simple signal injector was found in a Radio Electronics from July 1959. The transistors are CK722, and the frequency generated depends on the capacitors. The signal is rich in harmonics.
Signal injector (CB23619E)
- Details
- Written by: Newton C. Braga
