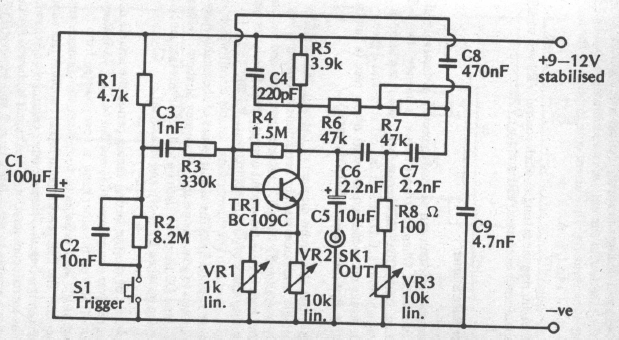

This circuit generates a signal that resembles the sound of a triangle. We found it in an English documentation from 1989. The transistor could be a BC548. The signal must be applied to an external amplifier.
Triangle sound generator (CB22206E)
- Details
- Written by: Newton C. Braga
