Electronic organ CA3130 (CB22002E)

Details
Written by: Newton C. Braga

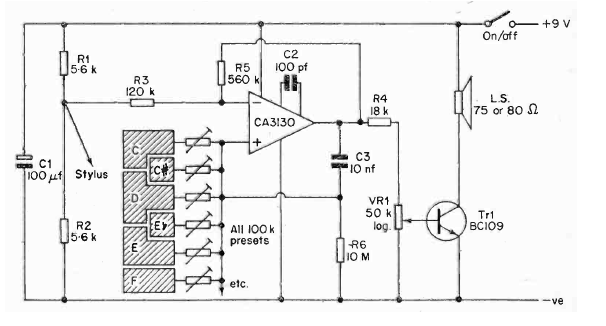

Found in an English publication from 1977 about the CA3130, this circuit uses a probe to play a keyboard determined by the notes. The power source is single, and the adjustment of the notes is independent.
