SCR DC flasher (CB22109E)

Details
Written by: Newton C. Braga

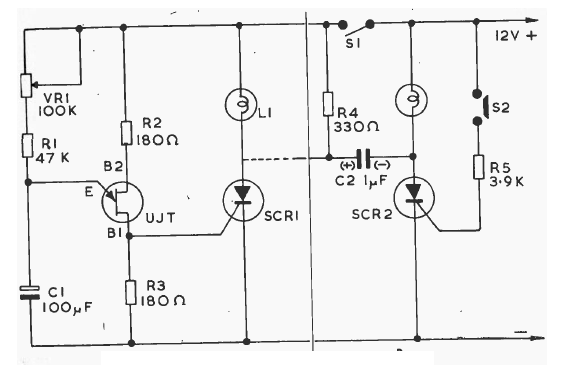

This flasher with a bistable version formed by SCRs works with low voltage incandescent lamps. The unijunction can be a 2N2646. Frequency is set in VR1.
