Tone Generator (CB22203E)
- Details
- Written by: Newton C. Braga

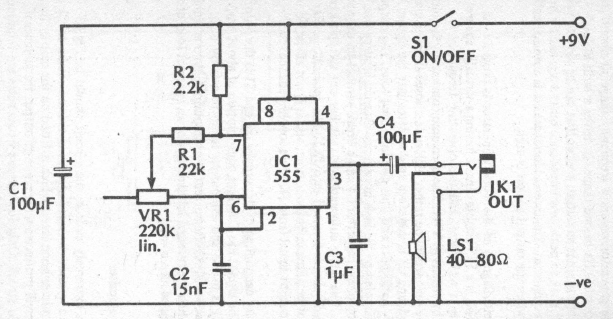

This circuit generates a tone whose frequency is set at VR1. The signal is reproduced in a loudspeaker or applied to an external circuit via the output jack.
