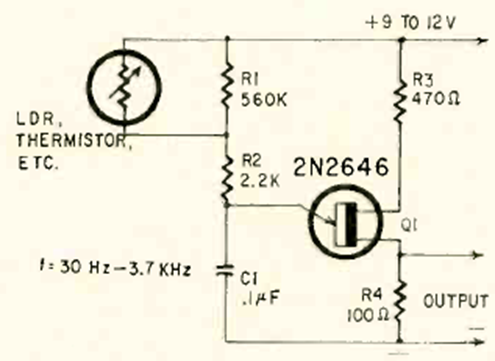

This circuit that converts light intensity into frequency was found in Radio Electronics magazine from June 1968. The circuit operates in the range of 30 Hz to 3.7 kHz with the values of the components used.
Analog to digital converter (CB23908E)
- Details
- Written by: Newton C. Braga
