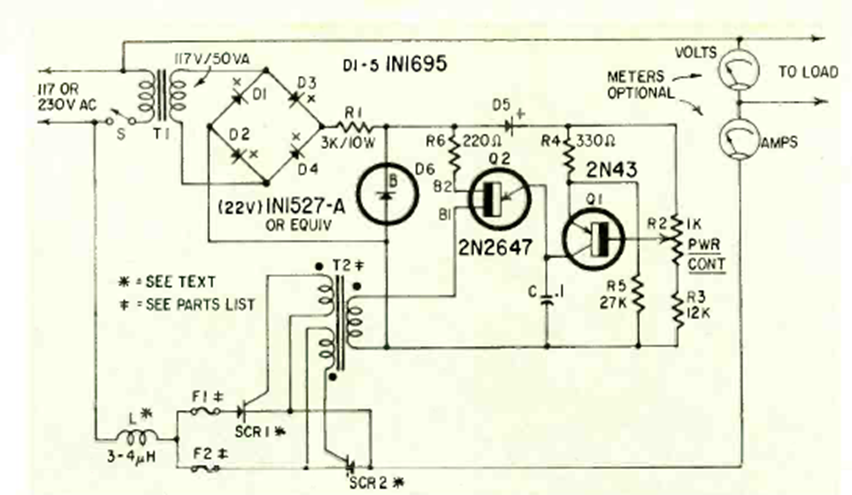

This circuit was found in Radio Electronics from May 1965. The SCRs and transistors are from that time. The circuit can be created with equivalent modern components. Note that the circuit uses instruments to measure voltage and current in the load.
