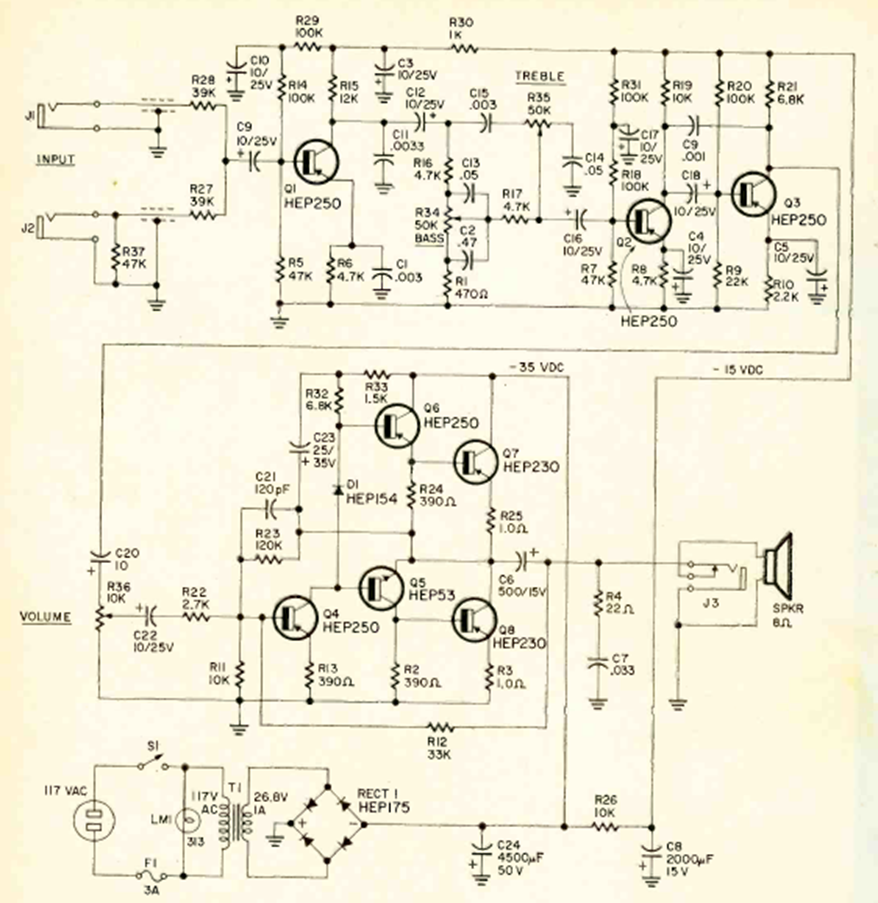

This transistorized guitar amplifier was featured in the November 1968 issue of Radio Electronics magazine. The dual-input circuit includes a powerful power supply. The output transistors must be equipped with heatsinks.
| Clique na imagem para ampliar |
